Why Does Double-Sided Planing Stabilise Thickness and Reduce Processing Time for Batch-Produced Components?

Uneven thickness of wooden components after cutting or initial sawmill processing can create significant challenges in subsequent woodworking operations. Achieving the required dimensions traditionally requires material to pass through two separate machines. This approach extends production cycles, requires additional operators, and increases the amount of workshop space needed.

Simultaneously flattening and sizing both surfaces during the first pass fundamentally changes workflow organisation. Eliminating intermediate transport operations improves material flow and makes production more predictable. Companies processing large volumes of timber gain greater control over lead times while reducing the risk of dimensional defects at an early production stage.

How Do the Upper and Lower Cutterheads Work During Machining?

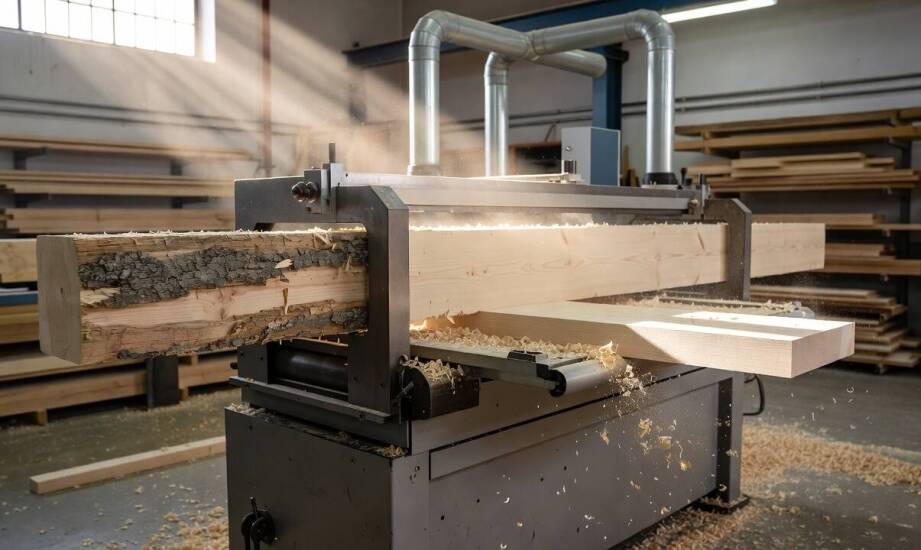

Advanced two-sided machining requires an integrated and highly rigid mechanical system. A properly configured double-sided planer operates using two cutterheads, an upper and a lower one, rotating simultaneously and constantly working together with the feed mechanism.

The upper cutterhead removes excess material from the top surface, while the lower unit machines the underside during the same cycle. This arrangement eliminates the need for operators to turn the board after it leaves the first cutting zone.

As a result, the risk of incorrect repositioning is significantly reduced, limiting the impact of human error on final dimensions. A single pass helps maintain a consistent programmed thickness throughout the full working length of the timber.

Double-Sided Processing and Wood Species

Machine rigidity alone is not enough to achieve an excellent surface finish. The natural characteristics of the material being processed also play a crucial role. Wood species, grain orientation and moisture content all influence how timber behaves when coming into contact with high-speed cutting tools.

Hardwood species require an appropriately optimised cutting angle, which helps prevent fibre tear-out along the edges, particularly when machining across the grain. Feeding material in the direction of the grain further reduces this risk and simplifies subsequent sanding operations.

Wood moisture content is equally important. Material with excessive moisture can create greater resistance during cutting, increasing the load on the drive system. Conversely, overly dry timber becomes more brittle and more susceptible to microcracks.

Under the pressure of feed rollers, edges and surfaces may become damaged. Therefore, machine parameters should be selected not only according to the required thickness but also according to the species and current condition of the timber being processed.

When Does Double-Sided Processing Accelerate Batch Production?

The manufacturing of mouldings, furniture components or laminated beams requires consistent dimensional accuracy. In large-scale production, simultaneous machining of both surfaces improves repeatability and helps maintain uniform parameters across larger batches of workpieces.

Maintaining parallelism between opposite surfaces is particularly important when preparing timber for gluing operations. Even small differences in thickness can make it difficult to achieve precise fitting and may negatively affect the quality of the finished product.

Fewer Operations Mean Better Logistics

Reducing processing to a single pass lowers the number of logistical operations required. In a traditional workflow, material must be transported between separate workstations, such as from a jointer to a thickness planer. In high-volume production, this material flow can create bottlenecks and increase the need for buffer storage space.

Using a machine that processes both sides simultaneously reduces the number of standalone workstations and allows recovered space to be used for other stages of production, including assembly, quality control or packaging.

Systems developed by engineers at Madora treat two-sided machining equipment as a key element of an integrated production chain. When properly incorporated into a workflow that includes complementary woodworking machines, such equipment creates an efficient working environment capable of handling demanding sawn timber.

A well-balanced production layout ensures that semi-finished wooden products can quickly move through manufacturing stages without unnecessary waiting time between operations.

The use of technology that machines both surfaces in a single cycle plays a decisive role in facilities focused on maximising productivity. Simultaneous operation of two cutting systems helps maintain consistent finished dimensions while reducing the total time required to move material from storage to assembly stations.

Companies investing in integrated machining solutions can reduce logistical downtime and optimise labour resources. As a result, a double-sided planer becomes not only a machine for achieving a specific timber thickness but also an important tool for improving the efficiency of the entire manufacturing process.

A properly configured machining system enables faster processing of large material batches, reduces downtime and supports consistent quality across finished components.
